Vampyre BATT

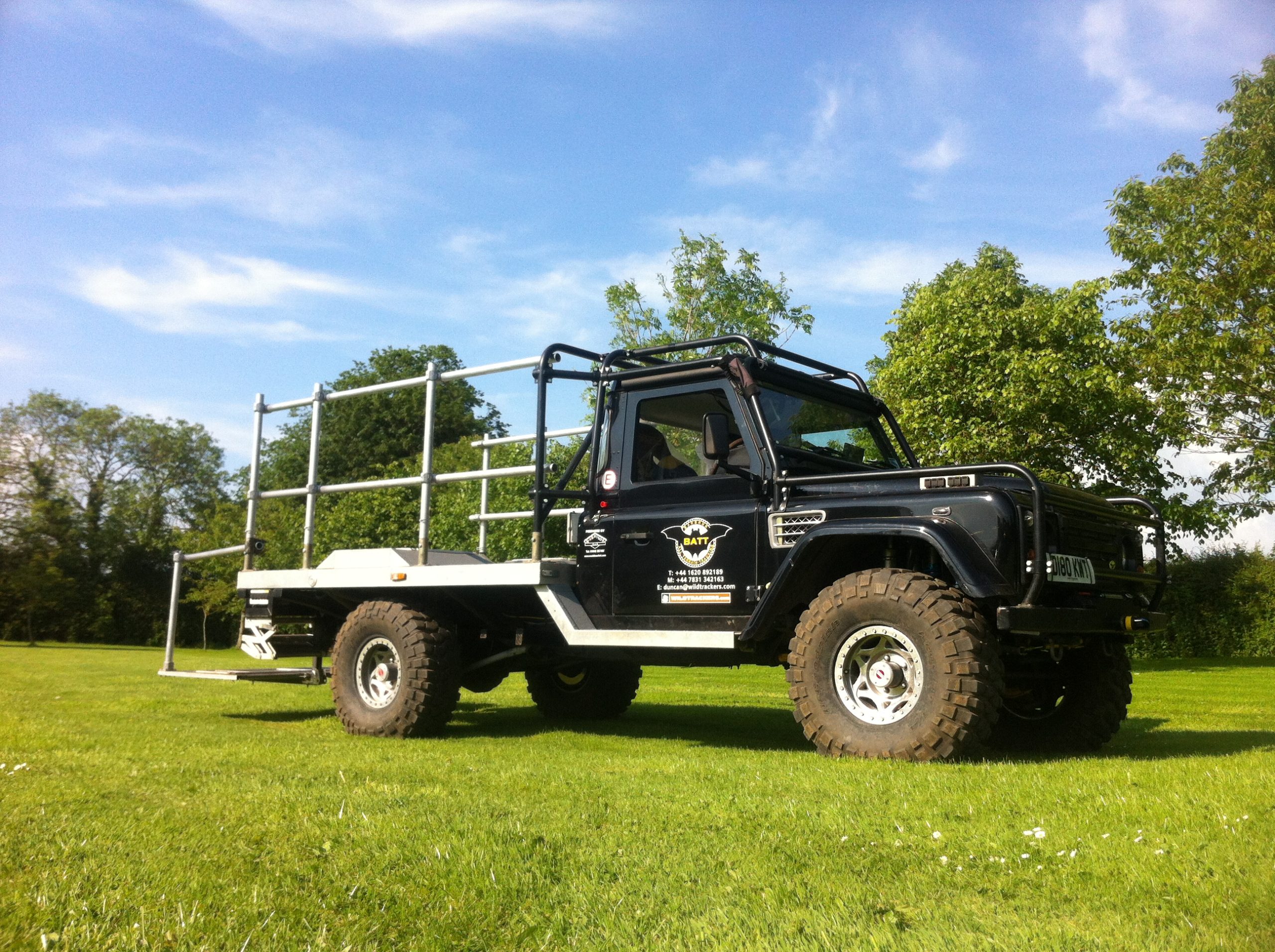

For the first time now we have a Camera Tracking Vehicle which is a true multi purpose and versatile camera tracking platform. Conventional camera tracking with fixed and stabilised heads such as Camera Revolution’s Libra mount. A platform for remote controlled cranes such as Alphagrip’s Scorpio Arm, for standard cranes all the way up to 30′ telescopic cranes and a re-positionable crane base as well. All in the on high performance package for both on road and real off road use.

Vehicle Dimensions:

  • OVERALL LENGTH: 5.5 metres – 18′
  • OVERALL WIDTH: 2.15 metres – 7′ 1″
  • HEIGHT: 2.1 metres – 6′ 8″

Rear Camera Platform:

  • LENGTH: 2.68 metres – 8′ 10″
  • WIDTH: 2.10 metres – 6′ 11″
  • HEIGHT OFF GROUND: approx. 990mm – 3′ 3″ (load dependant)
  • FRONT/REAR/ROOF BONNET PLATFORM: 1 metre x 2.10 metres – 3′ 3″ x 6′ 8″

Technical Specifications:

  • BASE VEHICLE: Land Rover 130 Defender chassis
  • ENGINE: General Motors, Corvette LS1. 5.7 litre Small Block V8
  • HORSEPOWER: 440 HP
  • TORQUE: 420 foot pounds

Transmission:

4 speed TorqueFlite automatic gearbox coupled to programmable Compushift Transmission Controller.

Suspension:

King Off Road Racking Shocks. Height adjustable and tuneable depending on terrain and load.

Axles:

Dynatrac Pro 60 Axles with locking differentials.

Seating:

Up to 5, full harness seatbelt equipped bucket seats, 4 of which can be moved around the rear platform.

“This is a vehicle and driver combination that revolutionises the art and precision of tracking where virtually any combination of on/off road conditions are equally suited”

– Harvey Harrison BSc
